Honey mixer-melter 230L 230V

Model: HCM230/230
Honey mixing machine is a beekeeper`s best friend to melt honey, produce creamed honey or honey mixtures.
2928€ 2400€ (without VAT)
Send an inquiry!

  • Device manufactured in Estonia
  • 5-year warranty
  • Reliable quality

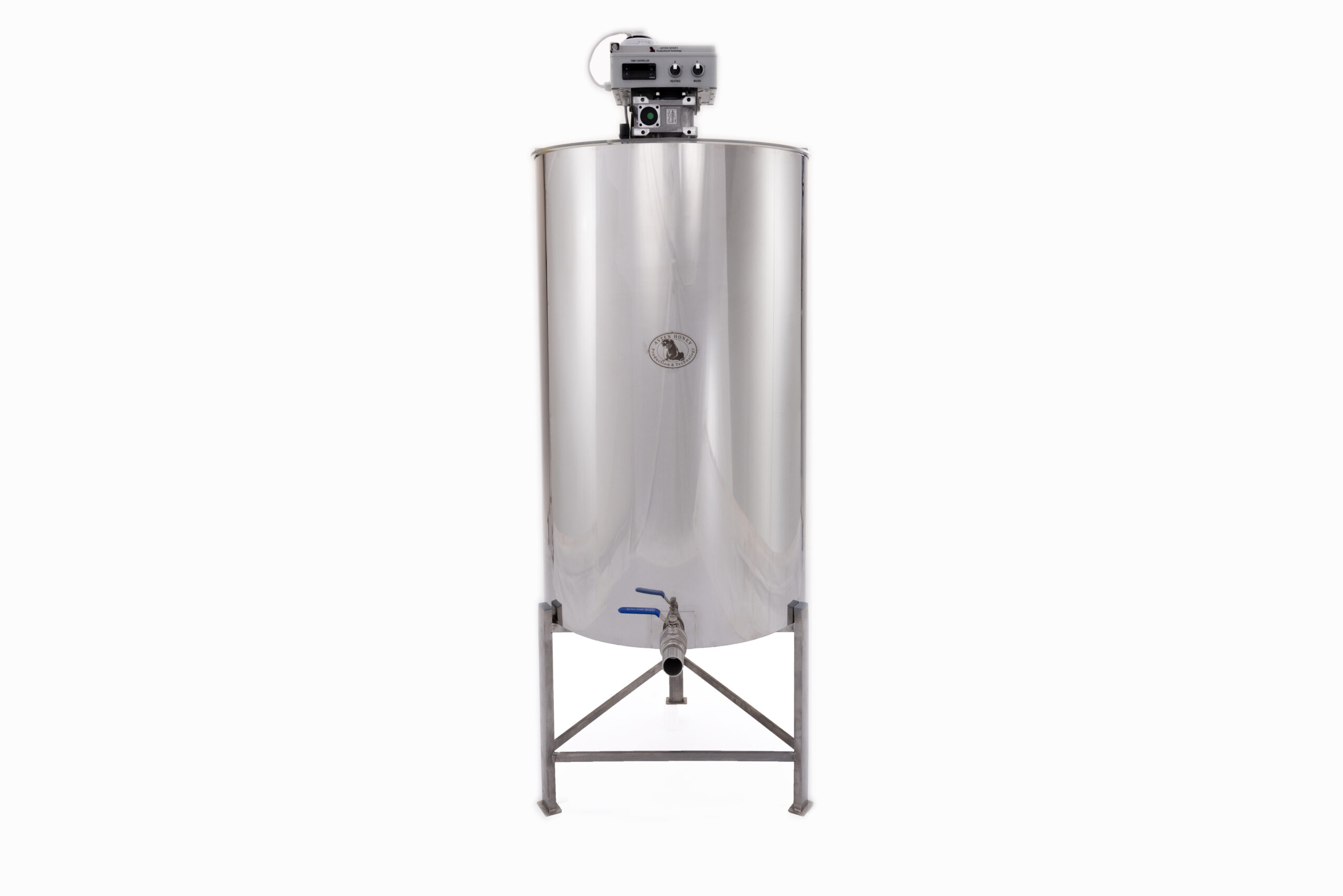

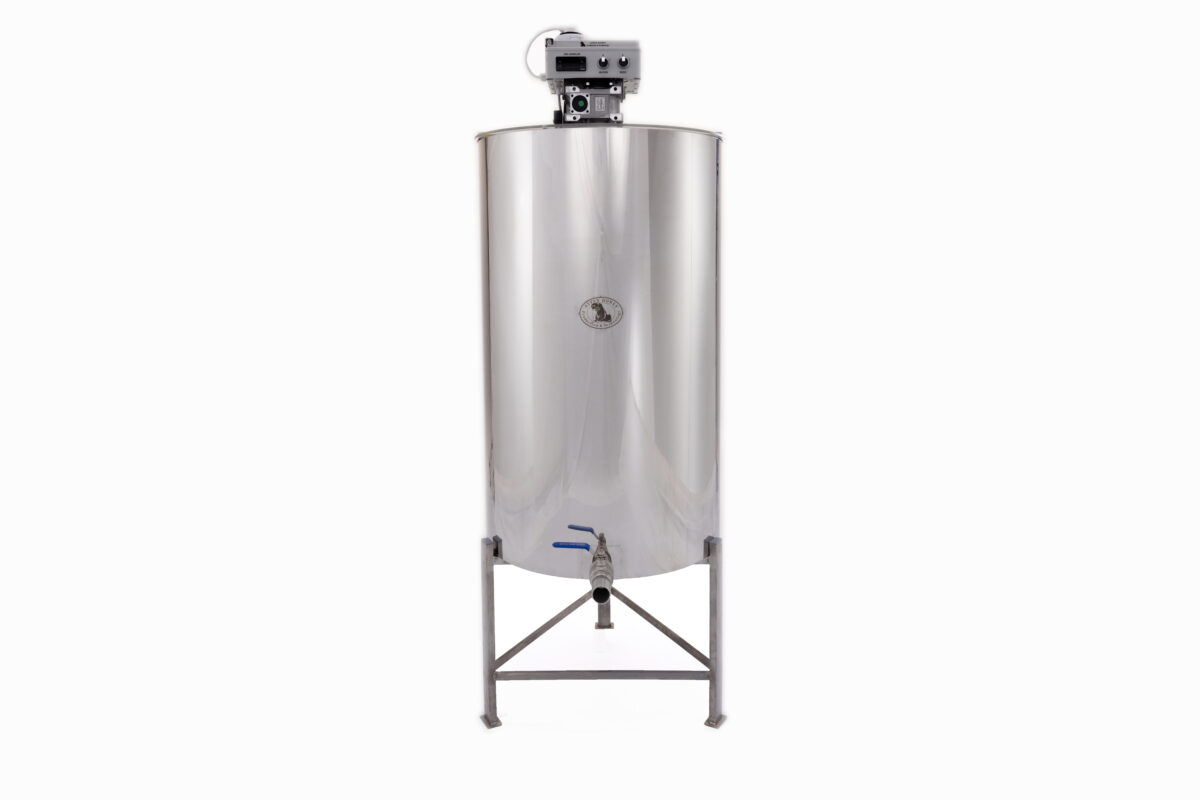

The honey mixer 230L is made for a beekeeper to heat, melt, mix and make cream honey.

The honey mixer is fully automatic and heated.

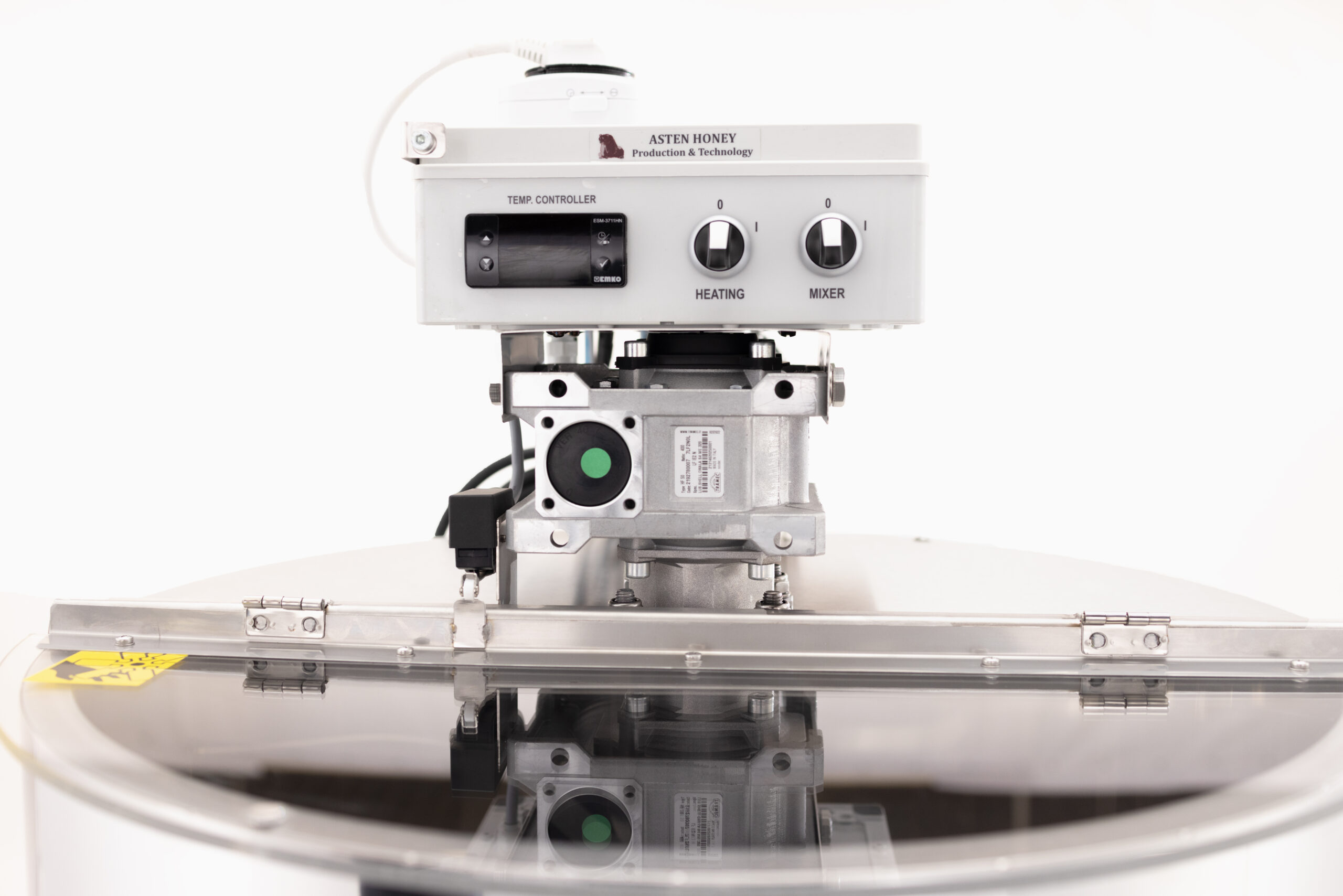

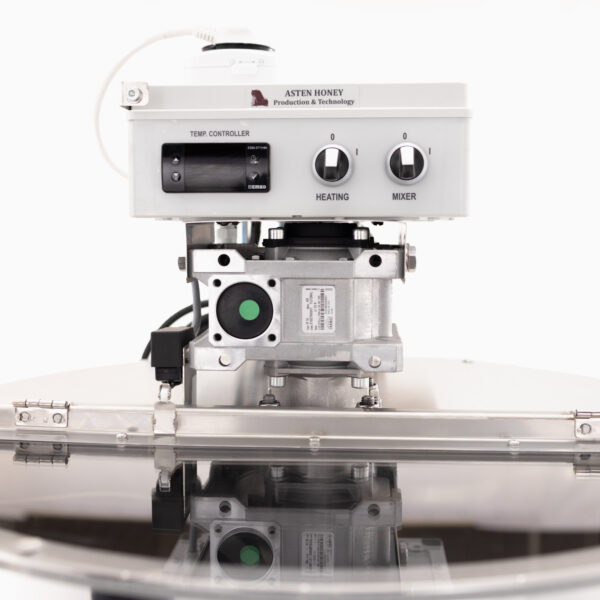

The honey mixer has a temperature controller ESM-3711-HN, which can be controlled on the control panel on top of the honey mixer.

The rotation of the honey mixer can be adjusted from the program clock next to the control panel.

It is possible to program different honey mixing times and cycles. 3.5 rotations per minute.

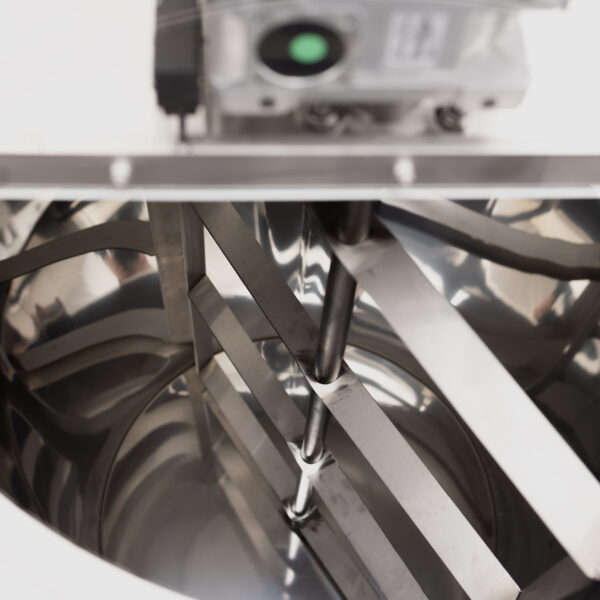

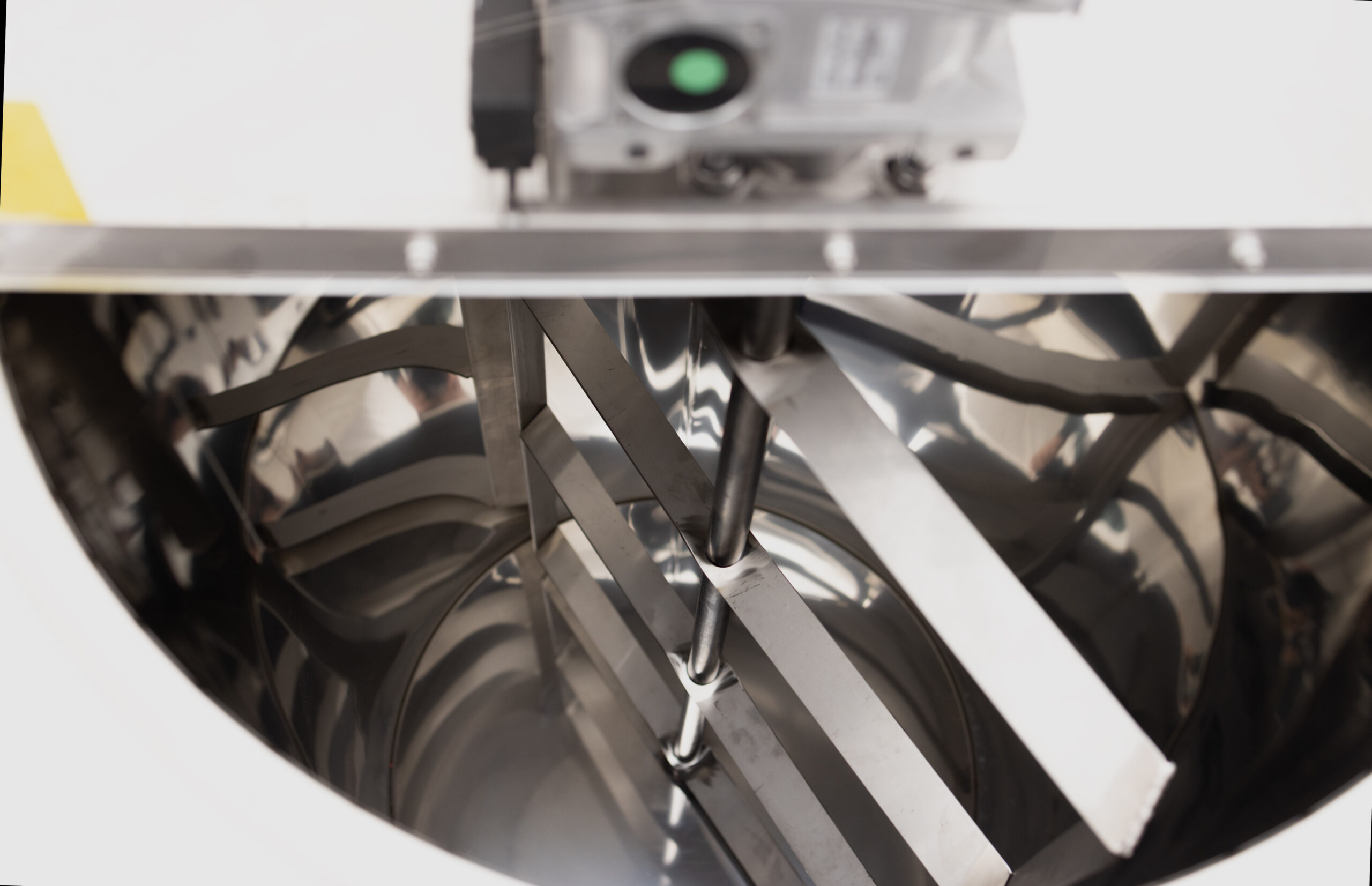

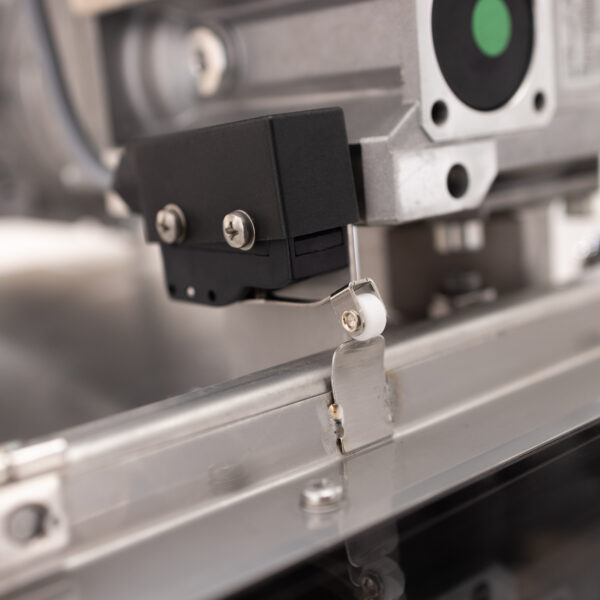

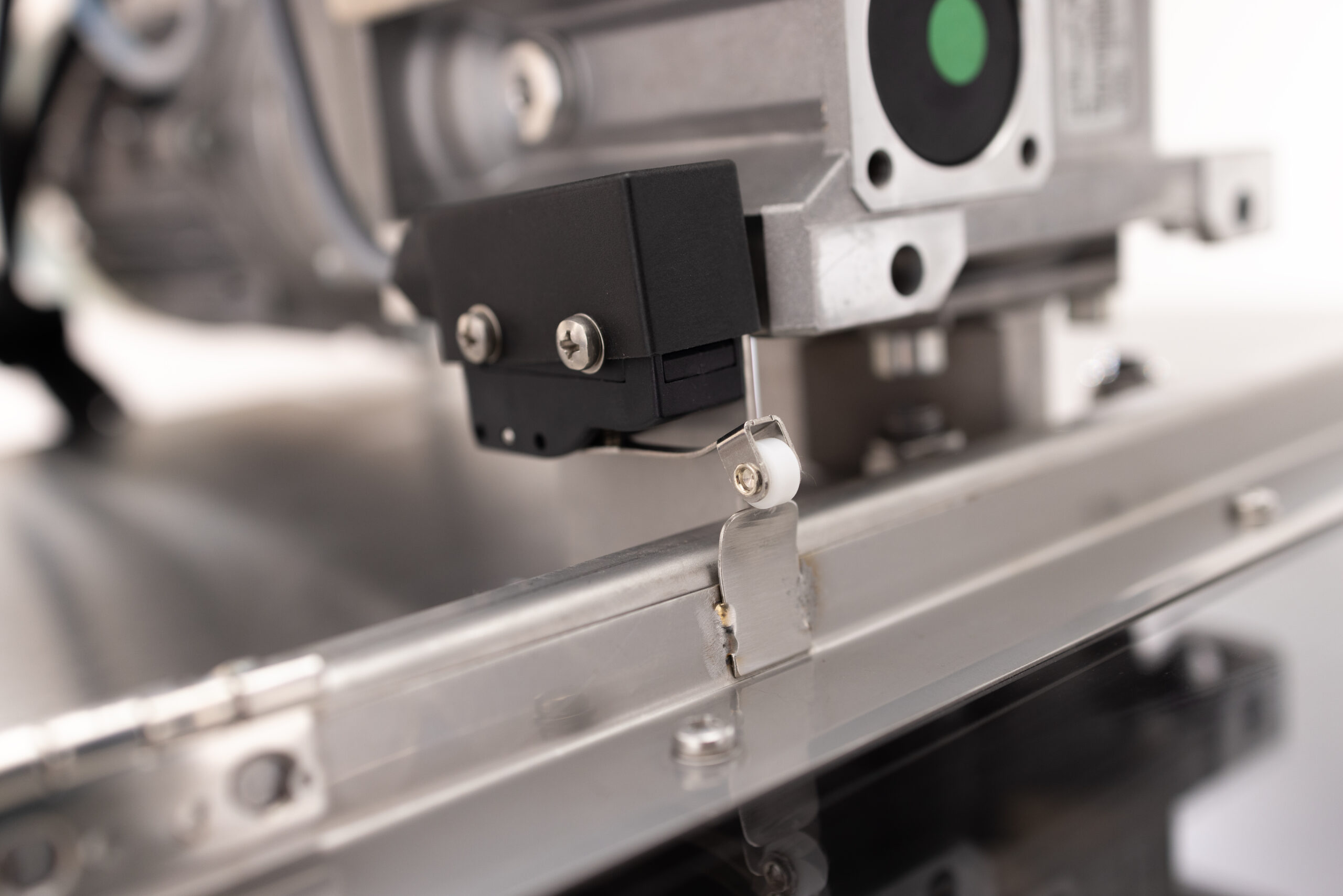

The honey mixer is equipped with a safety mechanism for the lid, ie the mixing blades of the honey mixer stop`s rotating when the lid is raised during the work process. Closing the lid continues the work process.

Technical specifications

  • Power supply 220V
  • Power cable length 3m
  • Cask layers of stainless steel AISI304
  • Insulation layer
  • It is possible to program different mixing times and cycles.
  • 3.5 rpm
  • Temp controller ESM-3711-HN
  • Temp sensor PT100
  • Timer 24h
  • Frequency converter 0.4kW
  • Heated up to 55C`
  • Heater power 520w
  • Plastic lid.
  • Lid safety stop mechanism.
  • Stainless steel ball valve 1 ¼
  • Height of the ball valve from the ground 400mm / 600mm
  • Motor power 0.25kW (Tramac)
  • Total power 1170w
  • Motor overload protection
  • Weight 60kg
  • Noise level 30dB

DEVICE DIMENSIONS:

  • Container height with motor 1350mm
  • Container width with motor 637mm
  • Container diameter 620mm
  • Elevation frame heights of 400 or 600mm

Manual

EN_Meesegaja 230l kasutusjuhend
